Exterior Phenolic Cladding & Rainscreen Panels
Key Features
American Architectural Products Group (AAPG) offers high-performance exterior cladding solutions for facades and soffits, crafted from exterior-grade Carbon Zero phenolic panels. Engineered for durability and sustainability, these panels provide a sleek, modern aesthetic while ensuring long-lasting performance in all weather conditions.
- Custom Finishes
- Woodgrains
- Solid Colors
- Custom Digital
- Panels
- Exterior Phenolic
- Performance Factors
- Class A Fire Rated
- Weather Proof
- High Impact Resistance
- Fastening Options
- Concealed Fasteners (EPSc)
- Color Match Face Fasteners (EPSf)
- Soffits, Columns, Walls
Ultimately Configurable
Available in large-format panels or as planks, AAPG’s cladding solutions are designed to accommodate a wide range of architectural styles and project requirements. Each system is supplied with all necessary attachment frames and clips, streamlining the installation process and ensuring structural integrity.
The cladding can be installed using either face-mounted (EPSf) or secret-mounted (EPSc) systems, offering flexibility to meet the specific design preferences of architects and builders. With hundreds of colors and woodgrain finishes to choose from, AAPG’s cladding provides extensive customization options. Each finish is backed by a 20-year warranty against fading, guaranteeing lasting beauty and visual appeal over time.
Whether for a striking architectural statement or a subtle, cohesive look, AAPG’s Carbon Zero phenolic cladding delivers a sustainable, durable, and visually stunning solution for any project.
Options
Exterior Cladding by AAPG is available in Phenolic.
| Materials Types | ||
|---|---|---|
| Phenolic Exterior Compact Laminates |
Weather Proof, Impact-Resistant, Fire-Rated | $$ |
| Product Thickness | |
|---|---|
| Panels: Phenolic & CompactWood® | 6.5mm, 8mm, 10mm, 12mm |
| Overall Projection Planks | Planks: 1/2" (12.7mm) |
| Overall Projection EPSf Panels | 1" (25.4mm) |
| Overall Projection EPSc Panels | 2" (50.8mm) |
| Reveal Options | |
|---|---|
| Types | Anodized Aluminum |
| Powder Coated Aluminum | to match any color |
| Panel Sizes (Max 12' x 5') | |
|---|---|
| Standard Panel Heights | 8'(2440mm), 10'(3050mm), 12'(3660mm) |
| Standard Panel Widths | 4' (1220mm), 5' (1530mm) |
| Standard Plank Sizes | 6" Wide x 8', 10' and 12' Long |
| Fire Rated | |
|---|---|
| Phenolic | ASTM-E84 Class 'A', CAN-ULC 102 Class A |
| CompactWood® | ASTM-E84 Class 'A', CAN-ULC 102 Class A |

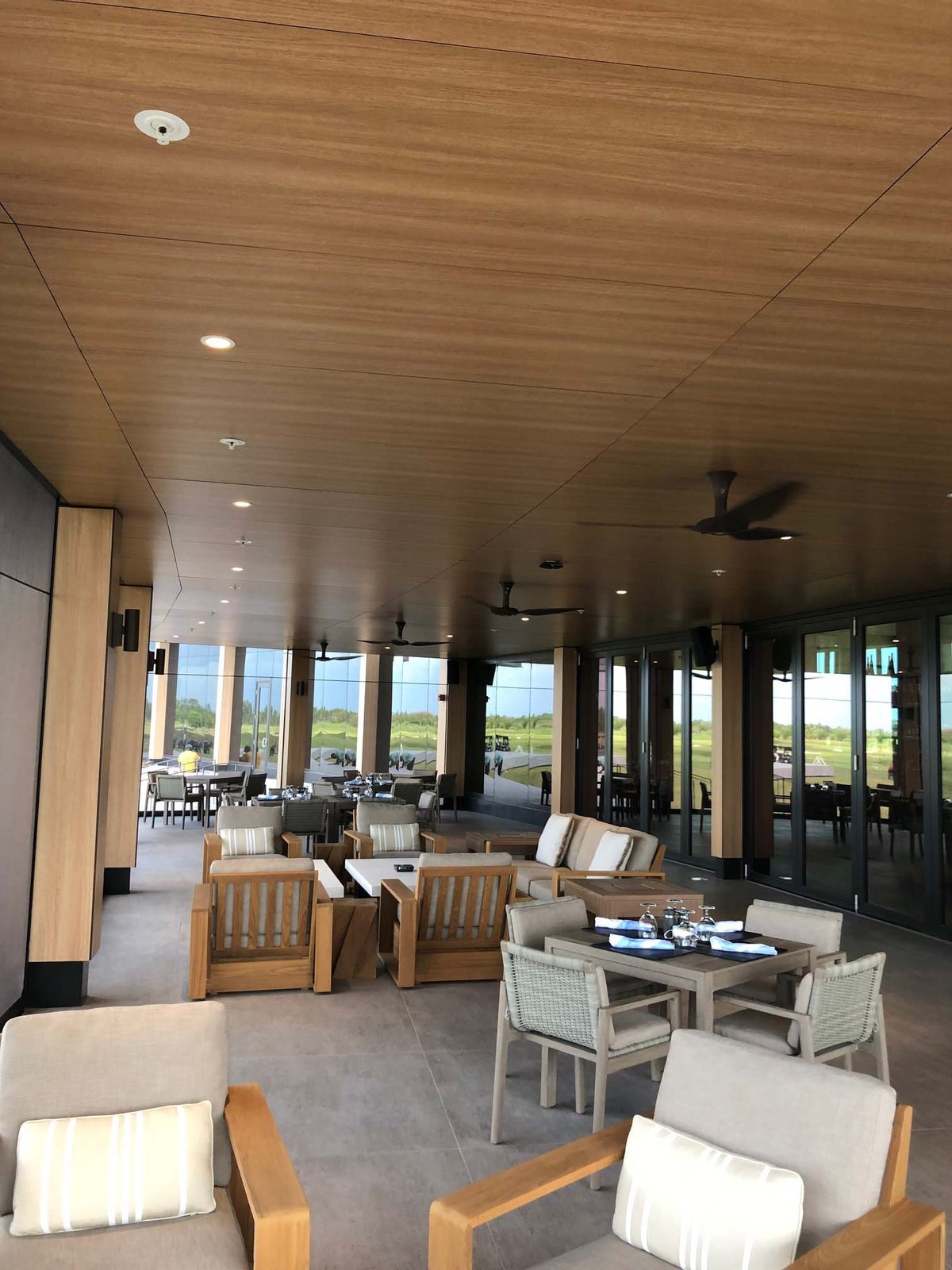

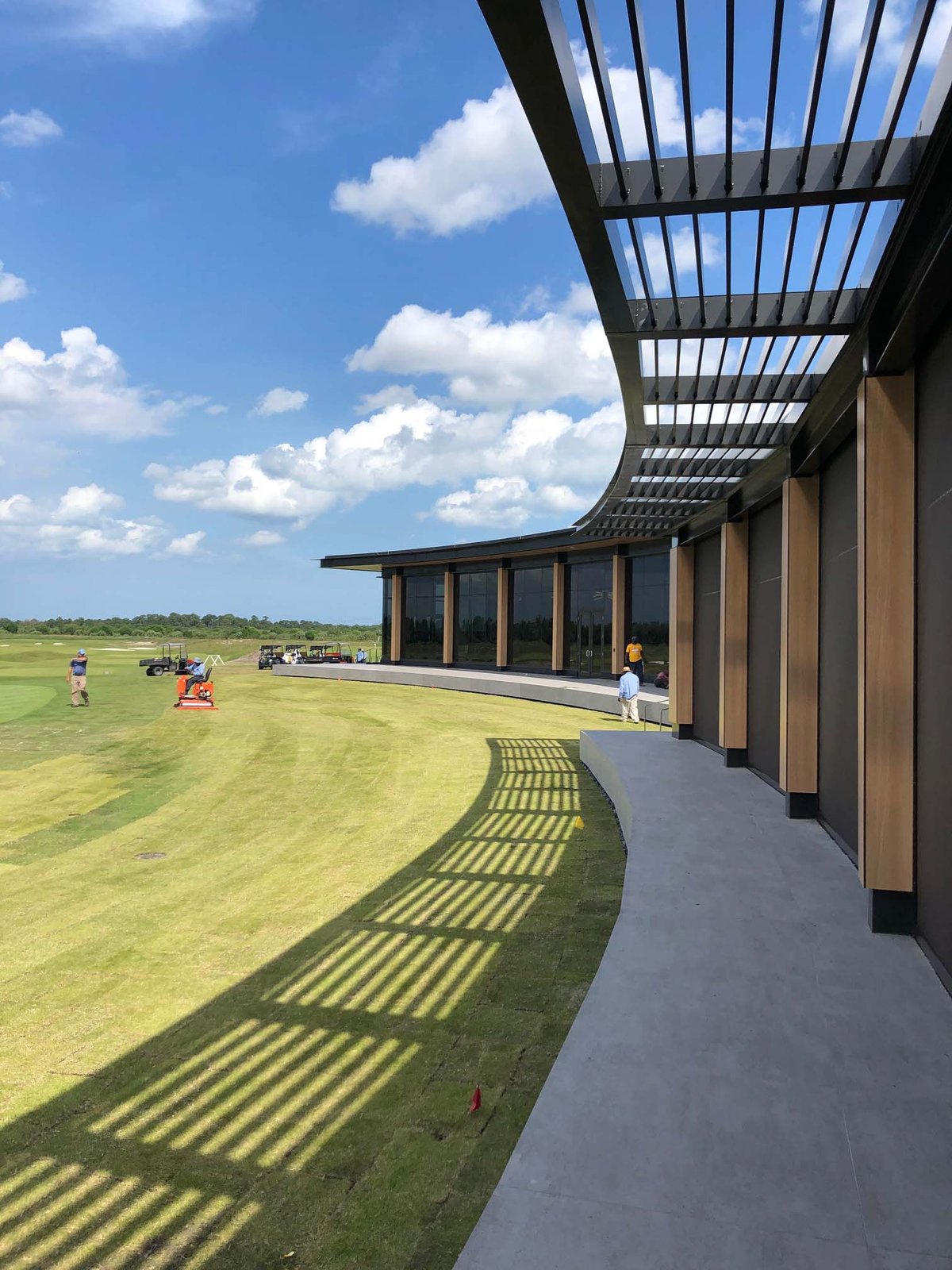

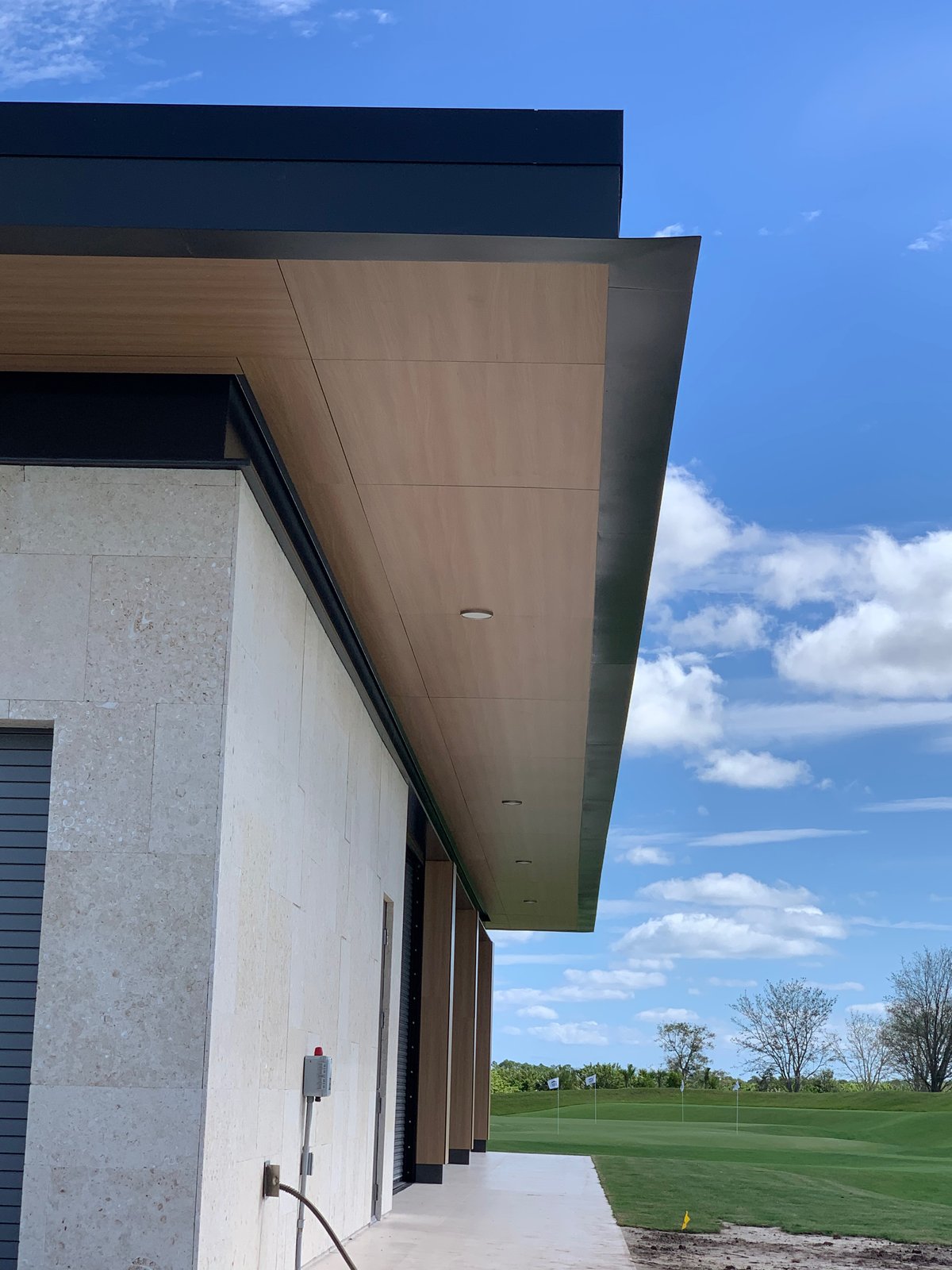

Gallery
Over the years we have delivered thousands of beautiful projects. See more of them on our Projects page
Documents & Downloads
Download the key AAPG Screen documents here. Visit our Downloads page to access all of our product documents, certifications and technical data
Exterior Cladding CSI Spec
Exterior Phenolic Wall Panels 3-Part CSI Specification (Section 07 42 43)
DownloadCare & Maintenance
Care & Maintenance Instructions
